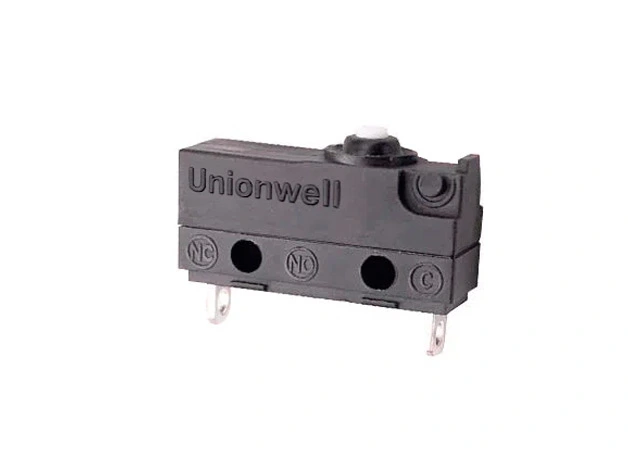

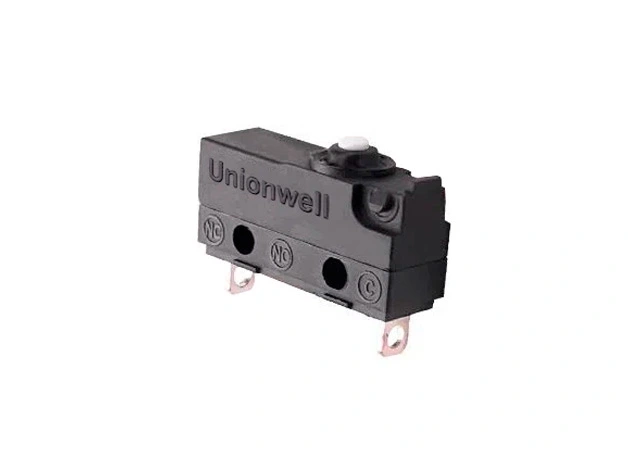

Dustproof Micro Switch Spherical Pin Plunger
Dustproof Micro Switch Spherical Pin Plunger
Dustproof Micro Switch Spherical Pin Plunger
Dustproof Micro Switch Spherical Pin Plunger

Dustproof Micro Switch Spherical Pin Plunger

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G905-300S00D2

  • Terminal Type: Solder Terminals

  • Lever Type: spherical pin plunger

  • Circuit Code: SPST-NC

Contact Us

Specifications of Dustproof Micro Switch Spherical Pin Plunger

RatingP10.1A 125/250VAC 48VDC Gold Plated Contact Optional
05UL: 5A 125/250VAC
ENEC: 6A 125/125VAC 1E4; 3A 125/250VAC 30VDC 5E4 μ25T120
Operating FrequencyElectrical10~30 cycles/min
Mechanical120 cycles/min
Contact Resistance (Initiative)100mΩ Max (lt depends on the wire length for the type with wire)
Insulation Resistance (at 500VDC)100mΩ Min
Dielectric StrengthAC 1,000V RMS(50-60Hz)
Storage Temperature-25℃~+120℃
Storage Humidity85% RH Max.
Service LifeElectrical10,000 cycles (Depend on part No.)
Mechanical500,000 cycles


Products
Contact with Us
Tel:
+86-20-87713867
E-mail:
inquiry@unionwellgz.com
Add:
RM1311, Renfeng Building, No. 490, Tianhe Road, Tianhe District, Guangzhou, Guangdong, China, 510630.
Unionwell
Switches are us, switch to us. Find quality micro switches at Unionwell

Popular Waterproof Micro Switch

200GF Max Sealed Mini Micro Switch G905
200GF Max Sealed Mini Micro Switch G905
Micro Switch IP67 200GF
Micro Switch IP67 200GF

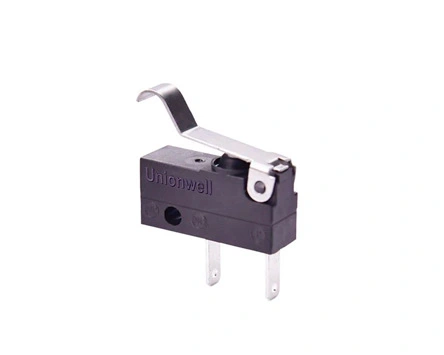

Waterproof Miniature Micro Switch Wires Custom Lever
