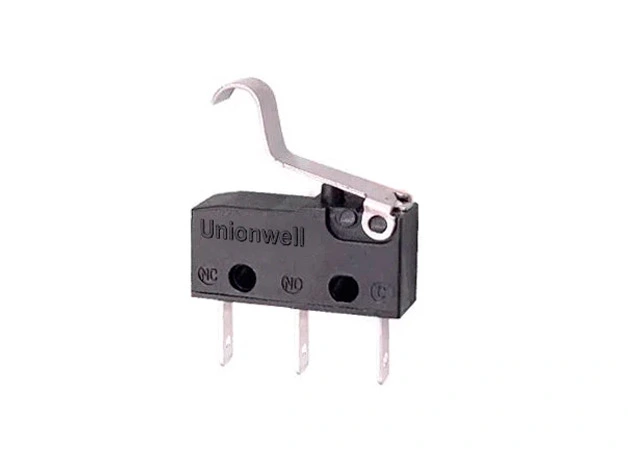

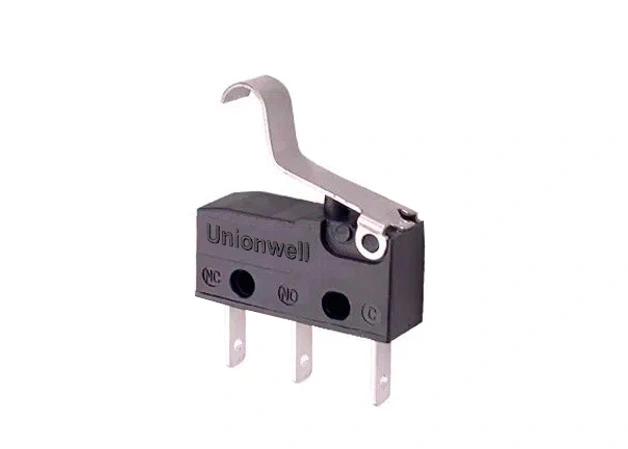

Dustproof Micro Switch 250GF Mounting Hole SPDT
Dustproof Micro Switch 250GF Mounting Hole SPDT
Dustproof Micro Switch 250GF Mounting Hole SPDT
Dustproof Micro Switch 250GF Mounting Hole SPDT

Dustproof Micro Switch 250GF Mounting Hole SPDT

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G9105-250D05D1

  • Terminal Type: Quick Connect Terminals

  • Circuit Code: SPDT

  • Mounting Hole: 2.30 mm

  • Lever Type: Small Simulated Roller Lever

Contact Us

Specifications of Dustproof Micro Switch 250GF Mounting Hole SPDT

RatingP10.1A 125/250VAC 48VDC Gold Plated Contact Optional
05UL: 5A 125/250VAC
ENEC: 6A 125/125VAC 1E4; 3A 125/250VAC 30VDC 5E4 μ25T120
Operating FrequencyElectrical10~30 cycles/min
Mechanical120 cycles/min
Contact Resistance (Initiative)100mΩ Max (lt depends on the wire length for the type with wire)
Insulation Resistance (at 500VDC)100mΩ Min
Dielectric StrengthAC 1,000V RMS(50-60Hz)
Storage Temperature-25℃~+120℃
Storage Humidity85% RH Max.
Service LifeElectrical10,000 cycles (Depend on part No.)
Mechanical500,000 cycles
