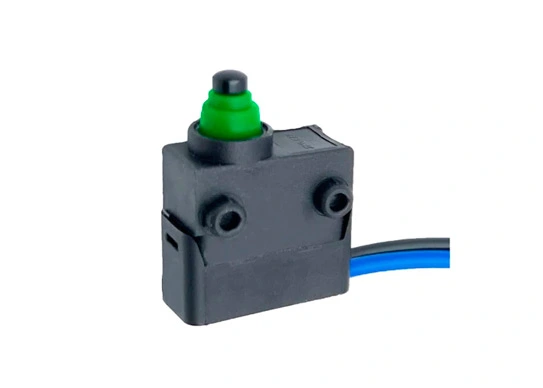

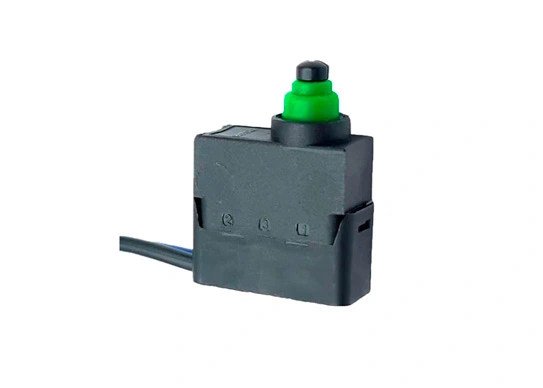

Waterproof Micro Switch Lead Wires SPST-NO
Waterproof Micro Switch Lead Wires SPST-NO
Waterproof Micro Switch Lead Wires SPST-NO
Waterproof Micro Switch Lead Wires SPST-NO

Waterproof Micro Switch Lead Wires SPST-NO

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G303-130F00C12-GA220-T232

  • Rating: 0.1A 125/250VAC; 3A 12VDC; 0.1A 48VDC, μ 1E5

  • Terminal: Molded Lead Wires on Right Side

  • Circuit Code: SPST-NO

  • Lever Type: No Lever

  • Certificates: UL, cUL, ENEC, CE, CQC, RoHS, Reach

  • Company Assurance System: ISO9001 & IATF16949

Contact Us

Specifications of Waterproof Micro Switch Lead Wires SPST-NO

Rating0.1A/125VAC; 3A/12VDC; 0.1A/250VAC; 0.1A/48VDC μ 1E5
Operating FrequencyElectrical0.1A-120 cycles/minute, 3A-10~30 cycles/minute
Mechanical120 cycles/minute
Contact Resistance (Initiative)100mΩ Max
Insulation Resistance (at 500VDC)100mΩ Min
Vibration Durability10~55Hz, move 0.75mm(p-p)
Dielectric Strength500VAC (50~60Hz)
Operating  Temperature-40℃~+85℃
Operating  Humidity85% RH Max
Service LifeElectricalMin.100,000 cycles
MechanicalMin.500,000 cycles
