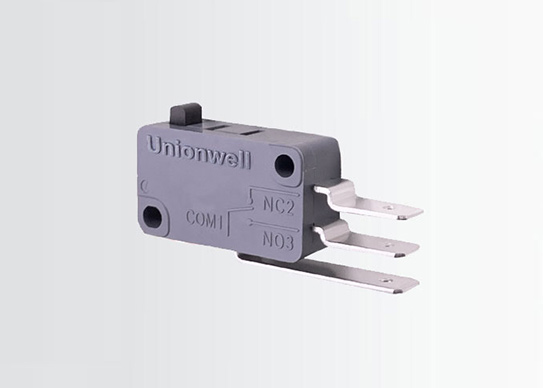

Dishwasher Micro Switch G5T16

  • Exclusive design for dishwasher door status sensing and float valve water level detecting.

  • Compact structure, small contact gap, snap action mechanism, high sensitivity, and short operating travel

  • Durable electrical and mechanical life and high reliability

  • Global safety certifications granted

  • Variety of terminals and levers

  • Multiple choices of operating force 100gf~400gf

  • Wide range of operating temperatures (-25° C~+125° C)

  • With PTI grades (175V, 250V, 600V) for selection

Dishwasher Micro G5T16 Switch Specifications

Place of OriginGuangdong, China (Mainland)
Brand NameUnionwell
Model NumberG5T16
Max Operating  Force (at pin plunger)200gf
Terminal TypeMold Lead Wires/Solder/PCB/Fork Shape
Lever TypeNo Lever/Hinge/Leaf/Simulated Roller/Roller/Special Design

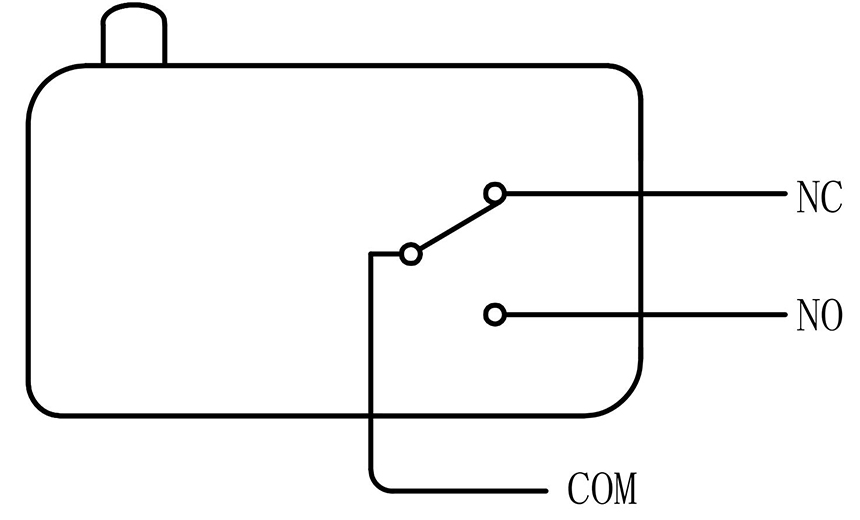

Circuit CodeSPDT/SPST-NO/SPST-NC
CertificationsENEC, UL/cUL, CQC
OEM/ODMAvailable
Operating speed0.1imn -1m/s(Related with actuator forms)
Operating frequencyMechanical 60 cycles/min; Electrical 15 cycles/min.
Insulation resistance≥100M Ω (500VDC)
Contact Resistance (Initial value)≥100m Ω
Voltage ResistanceBetween each terminals of the same polarityAC1000V, 50/60HZ, 1min.
Between current - carrying metal part and ground, and between eachterminaland non - current carring metal partsAC1500V, 50/60HZ,1min.
Vibration  resistance10-55HZ, l. 5mm Double amplitude
Shock resistanceDestruction: OF> 1. 0 N: 1000m/s2 (approx. 100G)max.
OF ≤1. 0 N:400m/s2 (approx. 40G) max.
Destruction: 0F> 1. 0 N:200m/s2 (approx. 20G) max.
OF ≤1. 0 N: 100m/s2 (approx. 10G) max.
Service LifeMechanical ≥10, 000, 000 cycles or 1, 000, 000 cycles
Electrical ≥50, 000 cycles or 100, 000 cycles
Unit Net WeightApprox. 6. 2g (No lever).


Products

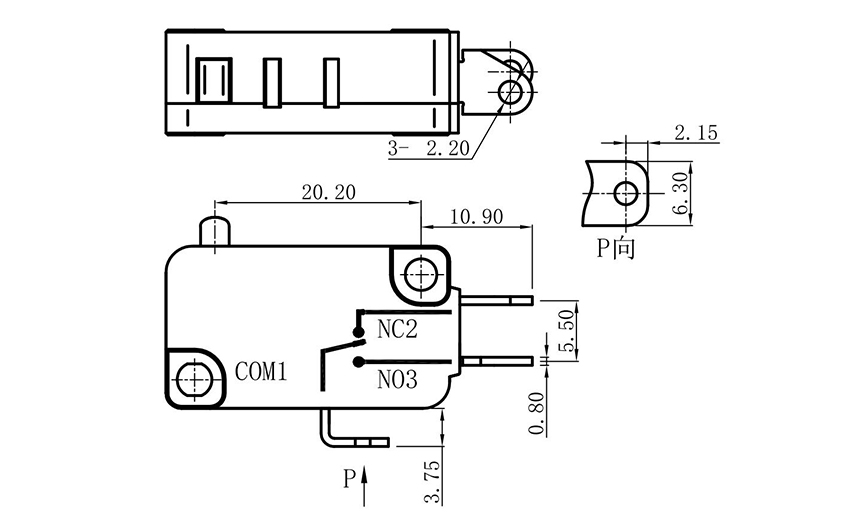

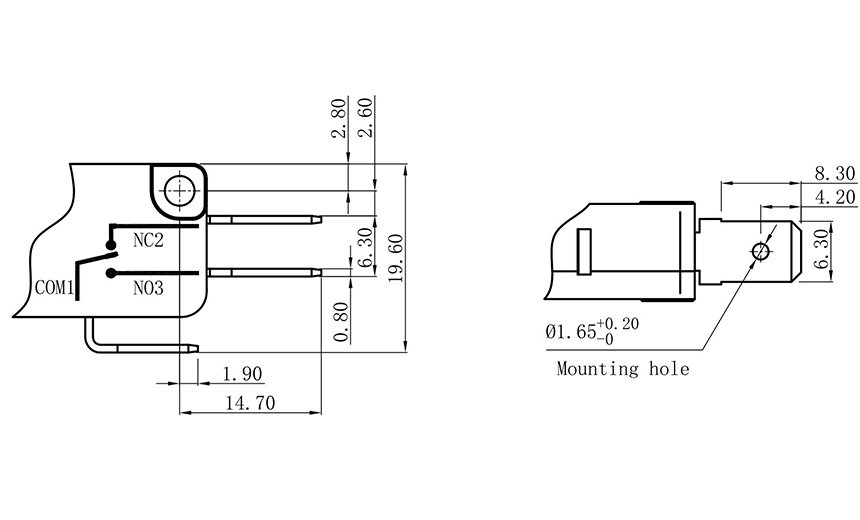

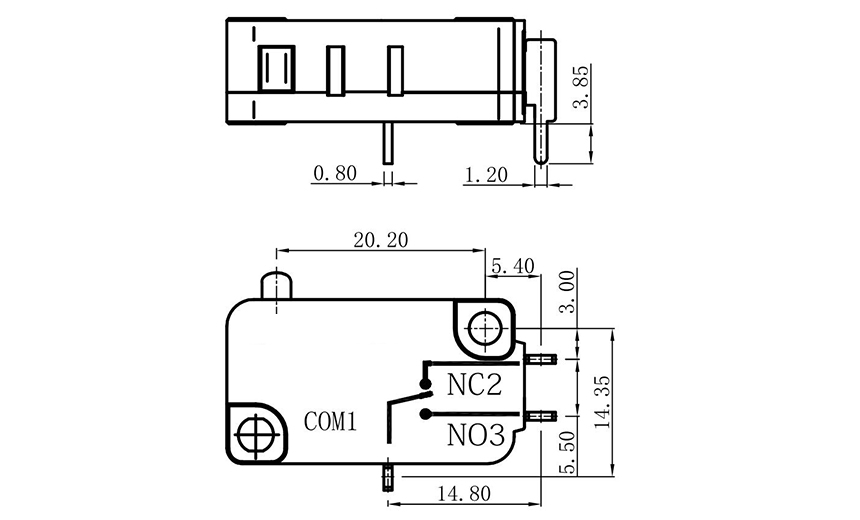

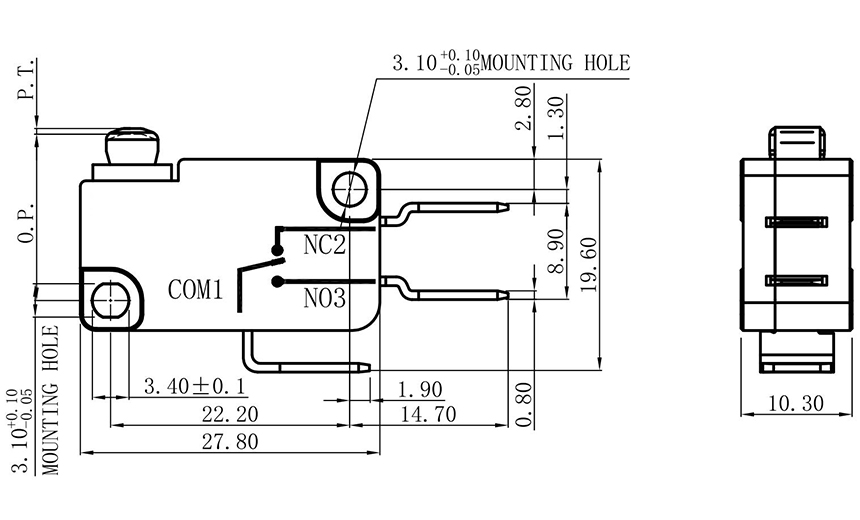

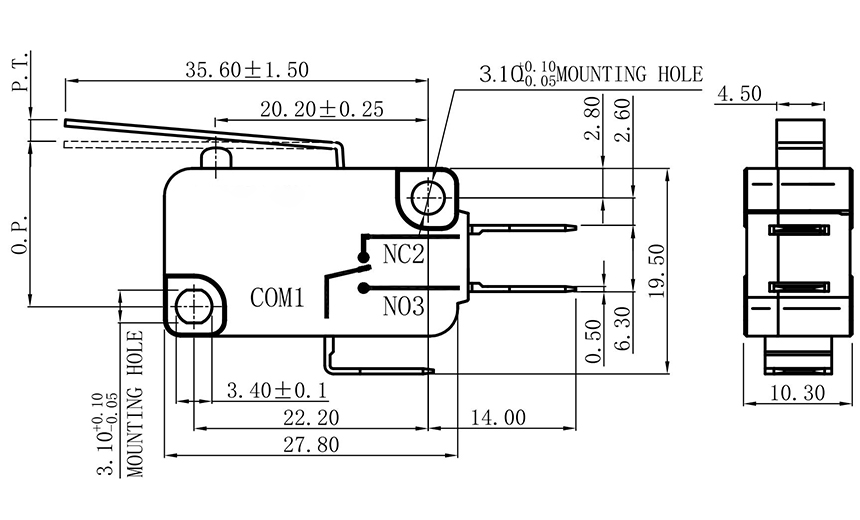

Dishwasher Micro G5T16 Switch Drawing

dishwasher overfill float switch
dishwasher float switch
dishwasher flow switch
dishwasher micro switch
dish washer switch
dishwasher on off switch

Dishwasher Micro G5T16 Switch Related Applications

The micro G5T16 switch is commonly used in dishwasher machines and other home appliances. It is a type of snap action switch that is designed to quickly turn the dishwasher on or off when the door is opened or closed.

The micro G5T16 switch is a reliable and durable component that is capable of withstanding the high demands of a dishwasher machine. It is known for its long service life and is commonly used in a wide range of other home appliances as well. Welcome to contact Unionwell-a preferred micro switch factory to know more.
