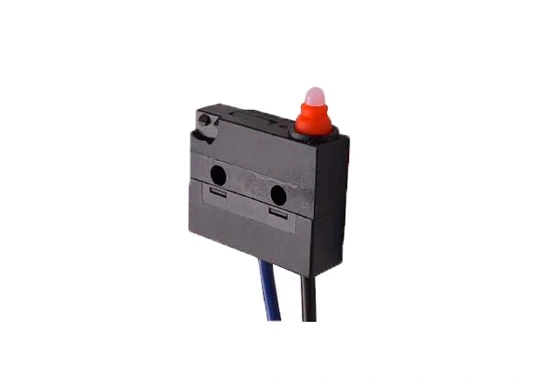

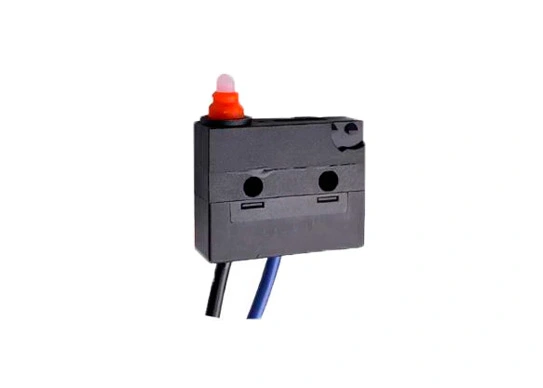

Sealed Miniature Micro Switch IP67
Sealed Miniature Micro Switch IP67
Sealed Miniature Micro Switch IP67
Sealed Miniature Micro Switch IP67

Sealed Miniature Micro Switch IP67

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G9A05-200E00CF-600

  • Terminal Type: Wires Leads to Bottom

  • Circuit Code: SPST-NO

  • Widely used in Auto Control, Appliance and Other Industry Control

Contact Us

Huizhou Greetech Electronics Co., Ltd is a leading manufacturer of precision microswitches, tactile switches, and other electronic components in China. With over 30 years of experience in the industry, Greetech has become known for its high-quality, reliable products that are trusted by customers worldwide.


Specifications of Sealed Miniature Micro Switch IP67

Rating

P1

0.1A 125/250VAC 48VDC (Gold Plated Contact Optional)

05

UL: 5A 125/250VAC

ENEC: 6A 125/250 1E4; 3A 125/250VAC 30VDC 5E4 µ 25T120

Operating Frequency

Electrical

10~30 cycles/minute

Mechanical

120 cycles/minute

Contact Resistance (Initiative)

100mΩ Max (It depends on the wire length for the type with wire)

Insulation Resistance (at 500VDC)

100MΩ Min

Dielectric Strength

AC1,000V RMS (50~60Hz)

Storage Temperature

-25°C~+120°C

Storage Humidity

85%RH Max

Service Life

Electrical

10,000 cycles (Depend on part No.)

Mechanical

500,000 cycles
