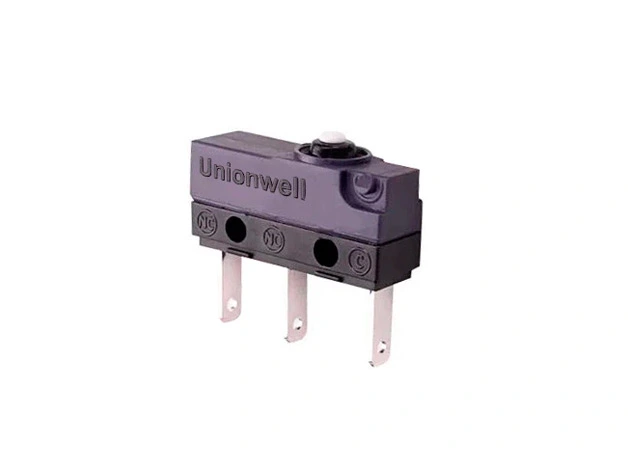

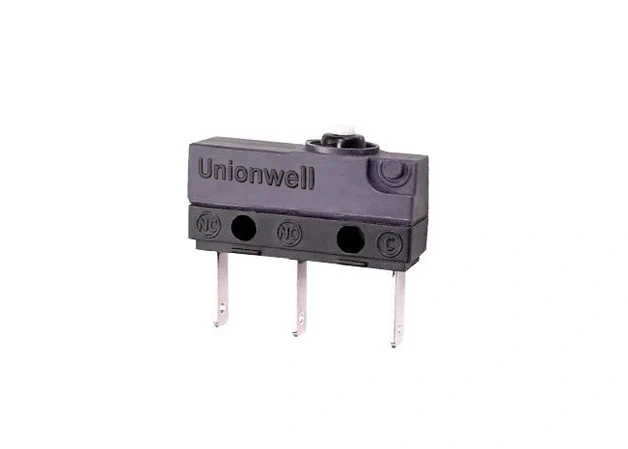

Dustproof Micro Switch SPDT With Terminals
Dustproof Micro Switch SPDT With Terminals
Dustproof Micro Switch SPDT With Terminals
Dustproof Micro Switch SPDT With Terminals

Dustproof Micro Switch SPDT With Terminals

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G905-200D00D1-T007

  • Terminal Type: Quick Connect Terminals

  • Circuit Code: SPDT

  • Lever Type: No Lever Pin Plunger

  • Company Assurance System: ISO9001 & IATF16949 & ISO14001

  • Application: Home Appliances, Electronic Equipment, Automatic Machines, Communication Equipment, Game Controller, Gas Detector, Food Processor, etc.

Contact Us

Product Features of Dustproof Micro Switch SPDT With Terminals

  • Small Compact Size

  • Long Life, High Reliability

  • Variety of Terminals and Levers

  • Wide Range Operating Force


Specifications of Dustproof Micro Switch SPDT With Terminals

RatingP10.1A 125/250VAC 48VDC Gold Plated Contact Optional
05UL: 5A 125/250VAC
ENEC: 6A 125/125 1E4; 3A 125/250VAC 30VDC 5E4 μ25T120
Operating FrequencyElectrical10~30 cycles/min
Mechanical120 cycles/min
Contact Resistance (Initiative)100mΩ Max (lt depends on the wire length for the type with wire)
Insulation Resistance (at 500VDC)100mΩ Min
Dielectric StrengthAC 1,000V RMS(50-60Hz)
Storage Temperature-25℃~+120℃
Storage Humidity85% RH Max.
Service LifeElectrical10,000 cycles (Depend on part No.)
Mechanical500,000 cycles


Products
Contact with Us
Tel:
+86-20-87713867
E-mail:
inquiry@unionwellgz.com
Add:
RM1311, Renfeng Building, No. 490, Tianhe Road, Tianhe District, Guangzhou, Guangdong, China, 510630.
Unionwell
Switches are us, switch to us. Find quality micro switches at Unionwell

Popular Waterproof Micro Switch

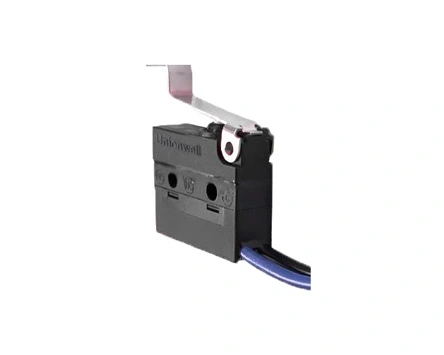

Spherical Pin Plunger Sealed Mini Micro Switch G905
