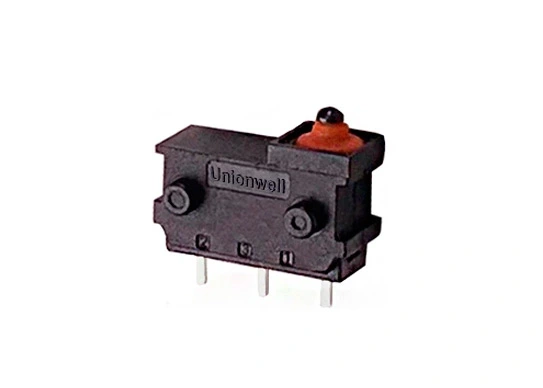

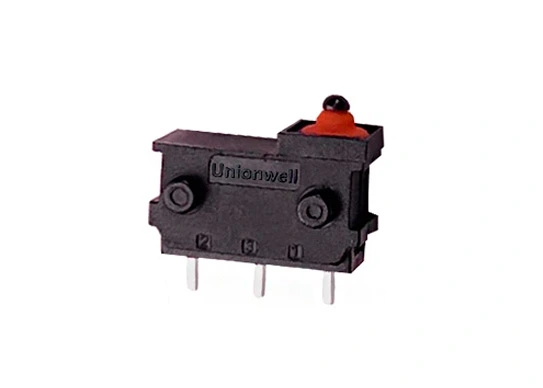

Subminiature Micro Switch 130GF Straight PCB Terminals
Subminiature Micro Switch 130GF Straight PCB Terminals
Subminiature Micro Switch 130GF Straight PCB Terminals
Subminiature Micro Switch 130GF Straight PCB Terminals

Subminiature Micro Switch 130GF Straight PCB Terminals

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G303-130P00A6BU

  • Terminal: Straight PCB Terminals

  • Circuit Code: SPDT

  • Lever Type: No Lever Pin Plunger

  • Safety Certificates: Many global safety certifications, such as ENEC, UL, CUL, CE, and CQC, have approved our products.

Contact Us

Specifications of Subminiature Micro Switch 130GF Straight PCB Terminals

Rating0.1A, 125/250VAC; 3A, 12VDC; 0.1A, 48VDC μ 1E5
Operating FrequencyElectrical0.1A-120cycles/minute; 3A-10~30 cycles/minute
Mechanical120 cycles/minute
Contact Resistance (Initiative)100mΩ Max.(without wire type)
Insulation Resistance (at 500VDC)100mΩ Min.
Vibration Durability10~55Hz, move 0.75mm(p-p)
Dielectric Strength500VAC (50~60Hz)
Operating Temperature-40℃~+85℃
Operating Humidity85% RH Max
Service LifeElectricalMin.100,000 cycles(Depend on part NO.)
MechanicalMin.500,000 cycles
