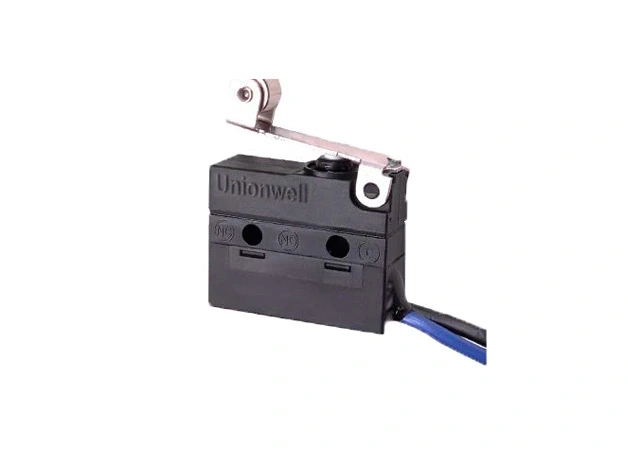

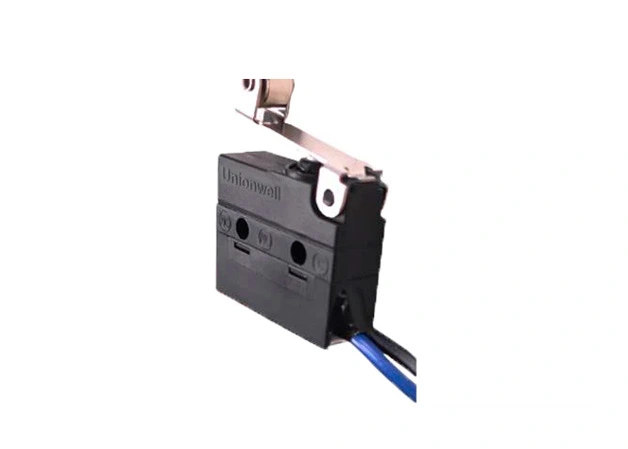

Name: Miniature Micro Switch 300GF Roller Lever G905
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

Descriptions of Miniature Micro Switch 300GF Roller Lever G905

Huizhou Greetech Electronics Corporation., Ltd now is participating in the global competition, more and more electronic component groups and distributors begin to know about Greetech. In addition, we are now making efforts in various internet platforms for Miniature Micro Switch promotion. Equipped with productive miniature micro switch factory, Huizhou Greetech Electronics Co.,Ltd. China (Mainland),Brand Name: Unionwell

Features of Miniature Micro Switch 300GF Roller Lever G905

Tight Configuration, Small Contact Gap, Snap Action
Long Life, High Reliability
Global Safety Approvals
Variety of Terminals
Wide Range Operating Force
Wide Range Temperature Grade
With Optional PTI Grade
Variety of Levers

Specifications of Miniature Micro Switch 300GF Roller Lever G905

Rating	P1	0.1A 125/250VAC 48VDC Gold Plated Contact Optional
	05	UL: 5A 125/250VAC
		ENEC: 6A 125/125VAC 1E4; 3A 125/250VAC 30VDC 5E4 μ25T120
Operating Frequency	Electrical	10~30 cycles/min
	Mechanical	120 cycles/min
Contact Resistance (Initiative)		100mΩ Max (lt depends on the wire length for the type with wire)
Insulation Resistance (at 500VDC)		100mΩ Min
Dielectric Strength		AC 1,000V RMS(50-60Hz)
Storage Temperature		-25℃~+120℃
Storage Humidity		85% RH Max.
Service Life	Electrical	10,000 cycles (Depend on part No.)
	Mechanical	500,000 cycles
