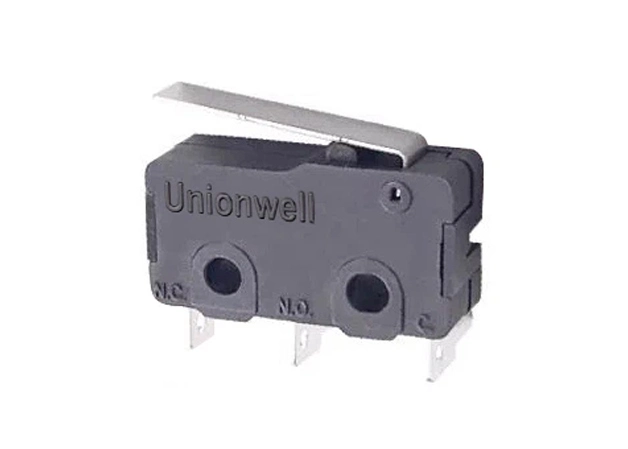

Name: Miniature Micro Switch Left Side PCB Terminals
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

Description of Miniature Micro Switch Left Side PCB Terminals

Micro switch is a kind of electronic component widely used in home appliances and automobile control. More manufacturers in China have started to engage in micro switch development and production.

For an automobile or household appliance manufacturer, we suggest seriously thinking about selecting high-quality snap-action switches. You should take the quality as the priority, not the price. Otherwise, the machines you use with the snap action switch will be damaged.

Quick Details of Miniature Micro Switch Left Side PCB Terminals

Place of Origin: Guangdong, China (Mainland)
Brand Name: Unionwell
Model Number: G605-150L01A
Terminal Type: Left Side PCB Terminals
Circuit Code: SPDT
Lever Type: Short Straight Lever

Product Parameters of Miniature Micro Switch Left Side PCB Terminals

Rating	P1/P11/P12	ENEC: 0.1A,125/250V 48VDC 5EA UL: 0.1A,125/250V 48VDC Gold Plated Contact Optional
	05/051/052	ENEC: 5A,125/250VAC UL: 5A, 1/8HP 125/250VAC
	10/101	ENEC: 10(2)A,125/250VAC U 25T125 UL: 10.1A, 1/4HP 125/250VAC Note: 250gf/Only with "OF "over "250gf"
	12	ENEC: 12(6)A,125/250VACU40T125 UL: 12A, 125/250VAC Note:350gf/Only with 350gf OF
Operating Frequency	Electrical	10-30 cycles/minute
Operating Frequency	Mechanical	120 cycles/minute
Contact Resistance (Initiative )		100mΩ Max (without wire type)
Insulation Resistance (at 500VDC)		100MΩ Min
Dielectric Strength		AC 1,000RMS(50-60HZ)
Storage Temperature		-25℃~+125℃
Storage Humidity		85%RH Max
Service Life	Electrical	10,000-50,000 cycles (Depend on part No.)
Service Life	Mechanical	1,000,000 cycles
