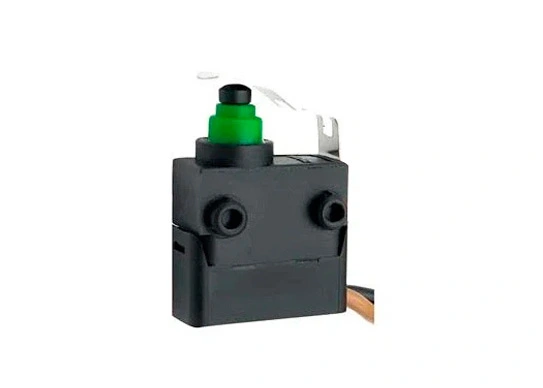

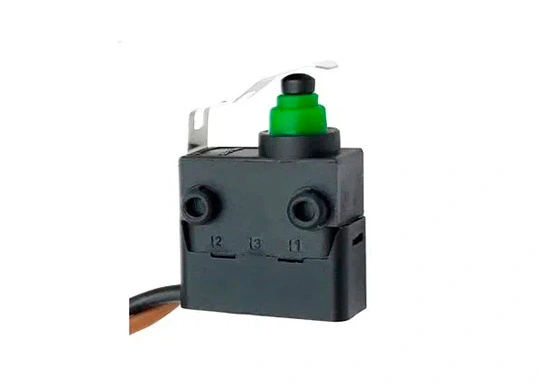

Waterproof Micro Switch SPDT Molded Lead Wires On Rightside
Waterproof Micro Switch SPDT Molded Lead Wires On Rightside
Waterproof Micro Switch SPDT Molded Lead Wires On Rightside
Waterproof Micro Switch SPDT Molded Lead Wires On Rightside

Waterproof Micro Switch SPDT Molded Lead Wires On Rightside

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G303-130F38A12-FA800

  • Rating: 0.1A 125/250VAC; 3A 12VDC; 0.1A 48VDC μ 1E5

  • Terminal: Molded Lead Wires on Right Side

  • Circuit Code: SPDT

  • Lever Type: 38# Lever

  • Certificates: UL, cUL, ENEC, CE, CQC, RoHS, Reach

  • Company Assurance System: ISO9001 & IATF16949 & ISO14001

  • Application: Car, Air conditioner, Auto Electronics, Communication,

  • Electric Toothbrush, Home Appliances, Motor Control, etc.

Contact Us

Equipped with a professional and productive micro switch factory, Huizhou Greetech Electronics Co., Ltd. is a leading China micro switch manufacturer and supplier.


We now have more than 600 staff working at 65,000㎡ factory buildings. The factory engineers have professional R&D experience in switches & connectors. All of our products are safety-approved by the global main market. Our Manufacturer has ISO9001, ISO/TS16949 and ISO14001 certified quality assurance system.


Specifications of Waterproof Micro Switch SPDT Molded Lead Wires On Rightside

Rating0.1A, 125/250VAC; 3A/12VDC; 0.1A/48VDC μ1E5
Operating FrequencyElectrical0.1-120 cycles/minute; 3-10~30 cycles/minute
Mechanical120 cycles/minute
Contact Resistance (Initiative)100mΩ Max.(without wire type)
Insulation Resistance (at 500VDC)100mΩ Min.
Vibration Durability10~55Hz, move 0.75mm(p-p)
Dielectric Strength500VAC (50~60Hz)
Operating Temperature-40℃~+85℃
Operating Humidity85% RH Max
Service LifeElectricalMin.100,000 cycles(Depend on part NO.)
MechanicalMin.500,000 cycles
