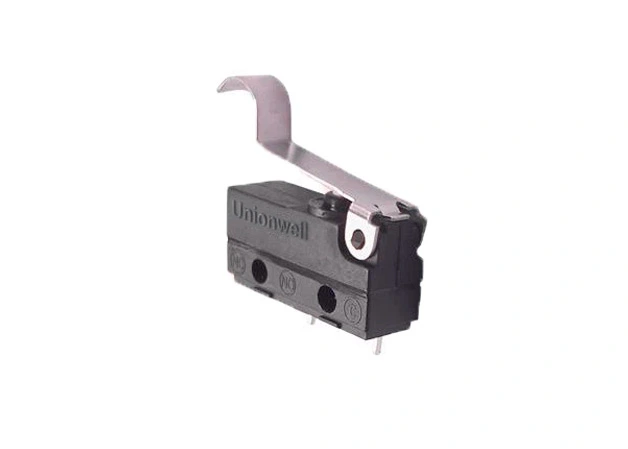

Name: Sealed Subminiature Micro Switch PCB Terminals G905
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

Descriptions of Sealed Subminiature Micro Switch PCB Terminals G905

Unionwell brand stands at the forefront of electronic component innovation, showcasing its expertise with the Sealed Subminiature Micro Switch PCB Terminals. Engineered with precision and sealed for durability, these switches offer unparalleled performance in various applications. Designed to withstand challenging environments, Unionwell's Sealed Subminiature Micro Switch PCB Terminals ensure reliable operation, making them ideal for automotive, aerospace, and industrial applications.

Specifications of Sealed Subminiature Micro Switch PCB Terminals G905

Rating	p1	0.1A 125/250VAC 48VDC/GoldPlated Contact Optional
	05	UL: 5A 125/250VAC ENEC: 6A 125/250 1E4; 3A 125/250VAC 30VDC 5E4 µ25T120
Operating Frequency	Electrical	10~30cycles/minute
	Mechanical	120cycles/minute
Contact Resistance(Initiative)		100mΩMax/It depends on the wire length for the type with wire
Insulation Resistance (at 500VDC)		100mΩ Min
Dielectric Strength		AC1,000V RMS (50~60Hz)
Storage Temperature		-25°C~+120°C
Storage Humidity		85%RH Max
Service Life	Electrical	10,000cycles/Depend on part No.
	Mechanical	500,000cycles
