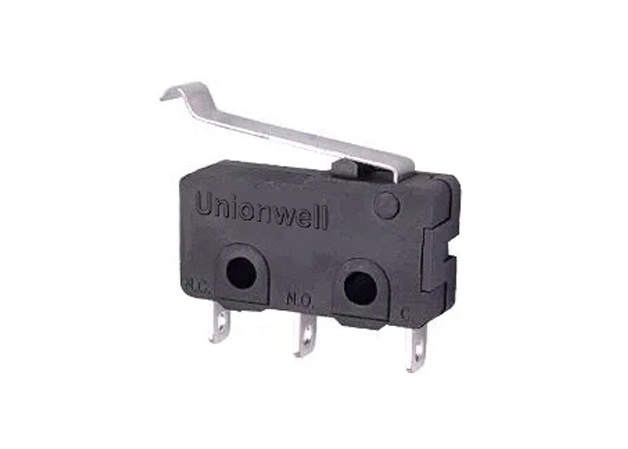

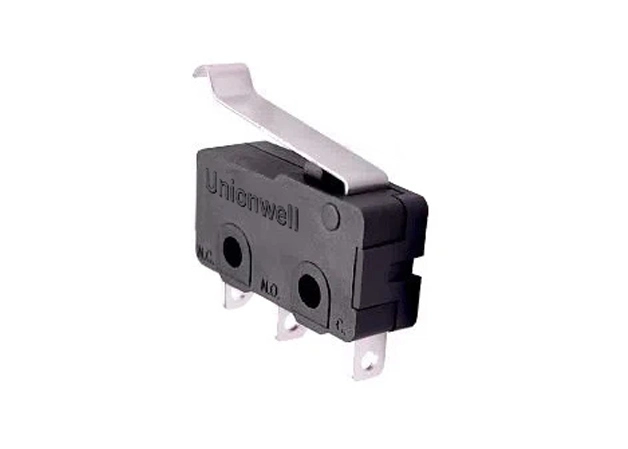

Name: Miniature Micro Switch SPDT Simulated Roller Lever
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

Product Quick Details of Miniature Micro Switch SPDT Simulated Roller Lever

Specifications of Miniature Micro Switch SPDT Simulated Roller Lever

Rating	P1/P11/P12	ENEC: 0.1A,125/250V 48VDC 5EA UL: 0.1A,125/250V 48VDC Gold Plated Contact Optional
	05/051/052	ENEC: 5A,125/250VAC UL: 5A, 1/8HP 125/250VAC
	10/101	ENEC: 10(2)A,125/250VAC U 25T125 UL: 10.1A, 1/4HP 125/250VAC Note: 250gf/Only with "OF "over "250gf"
	12	ENEC: 12(6)A,125/250VACU40T125 UL: 12A, 125/250VAC Note:350gf/Only with 350gf OF
Operating Frequency	Electrical	10-30 cycles/minute
Operating Frequency	Mechanical	120 cycles/minute
Contact Resistance (Initiative )		100mΩ Max (without wire type)
Insulation Resistance (at 500VDC)		100mΩ Min
Dielectric Strength		AC 1,000RMS(50-60HZ)
Storage Temperature		-25℃~+125℃
Storage Humidity		85%RH Max
Service Life	Electrical	10,000-50,000 cycles (Depend on part No.)
Service Life	Mechanical	1,000,000 cycles
