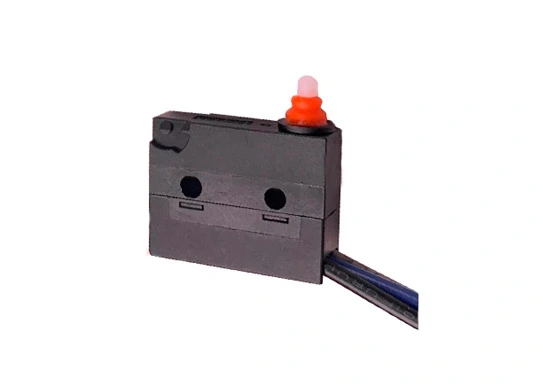

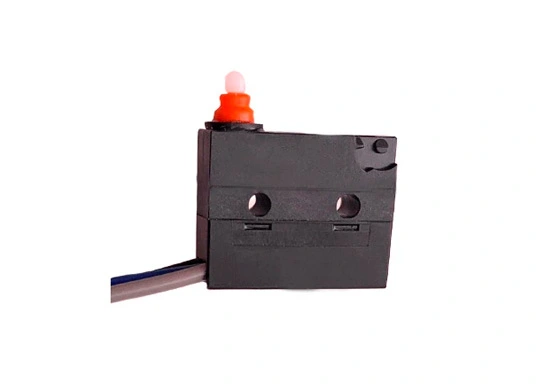

Sealed Mini Micro Switch Waterproof Shell 200GF
Sealed Mini Micro Switch Waterproof Shell 200GF
Sealed Mini Micro Switch Waterproof Shell 200GF
Sealed Mini Micro Switch Waterproof Shell 200GF

Sealed Mini Micro Switch Waterproof Shell 200GF

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G9A05-200G00AF-500

  • Terminal Type: Wires Leads to Left Side

  • Circuit Code: SPDT

  • Lever Type: No Lever Pin Plunger

Contact Us

Miniature micro switches are an essential component in many electronic devices and systems. They offer high reliability, versatility, and durability, which make them an ideal switch option. With their precision, ease of use, and adaptability, miniature micro switches continue to play a crucial role in today's technological advancements.


Specifications of Sealed Mini Micro Switch Waterproof Shell 200GF

RatingP10.1A 125/250VAC 48VDC 5E4 Gold Plated Contact Optional
05UL: 5A 125/250VAC
ENEC: 6A 125/250VAC 1E4; 3A 125/250VAC 30VDC 25T 120 μ5E4
Operating FrequencyElectrical10~30 cycles/min
Mechanical120 cycles/min
Contact Resistance (Initiative)100mΩ Max (lt depends on the wire length for the type with wire)
Insulation Resistance (at 500VDC)100mΩ Min
Dielectric StrengthAC 1,000V RMS(50-60Hz)
Storage Temperature-25℃~+120℃
Storage Humidity85% RH Max.
Service LifeElectrical10,000~100,000 cycles (Depend on P/N)
Mechanical500,000 cycles
