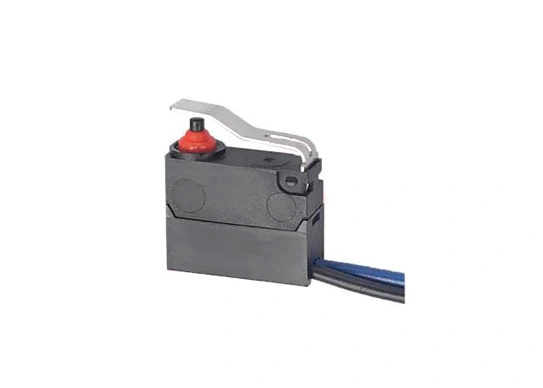

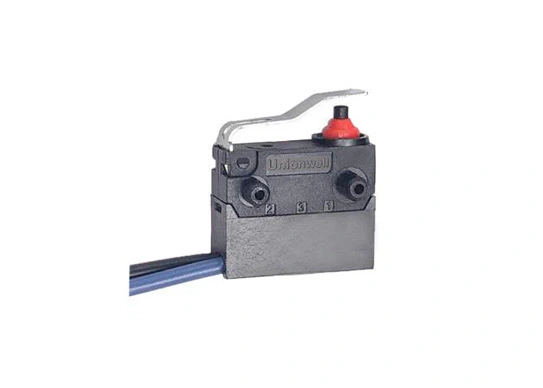

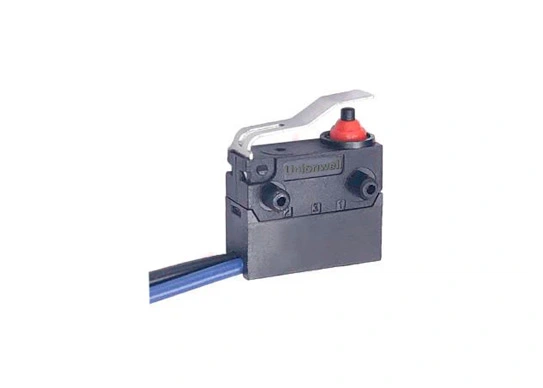

Name: Subminiature Sealed Micro Switch With Wires G3
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

The Subminiature Sealed Micro Switch with Wires G3 is a compact, robust switch designed for reliable operation in demanding environments. Its sealed design provides protection against dust, moisture, and other contaminants, making it ideal for applications in harsh conditions. The G3 model comes pre-wired, simplifying installation and ensuring secure connections. Despite its small size, this subminiature switch delivers precise and consistent performance, suitable for use in automotive, industrial, and consumer electronics. The G3's durability and reliable actuation make it an excellent choice for engineers needing a space-saving, high-quality switch for critical applications.

Features of Subminiature Sealed Micro Switch With Wires G3

Deigned For Water and Dust Tight (IP67)
Small Compact Size
Global Safety Approvals
Long life and High Reliability
Variety of Lever
Wide Range of Wiring Terminals
Widely used in Automotive Electronics, Appliance control, Industrial Control etc

Specifications of Subminiature Sealed Micro Switch With Wires G3

Rating		0.1A, 125/250VAC; 3A/ 12VDC; 0.1A/ 48VDC, μ 1E5.
Operating Frequency	Electrical	0.1A-120/3A-10~30 cycles/minute
	Mechanical	120 cycles/minute
Contact Resistance (Initiative)		100mΩ Max(without wire type)
Insulation Resistance (at 500VDC)		100mΩ Min
Vibration Durability		10~55Hz, move 0.75mm (p-p)
Dielectric Strength		500VAC(50~60HZ)
Operating Temperature		-40℃~+85℃
Operating Humidity		85% RH Max
Service Life	Electrical	6,000~500,000 cycles (Depend on part NO.)
	Mechanical	Min. 300,000/cycles
