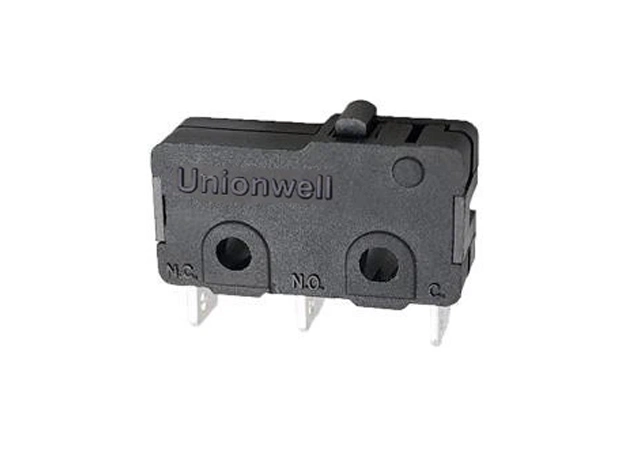

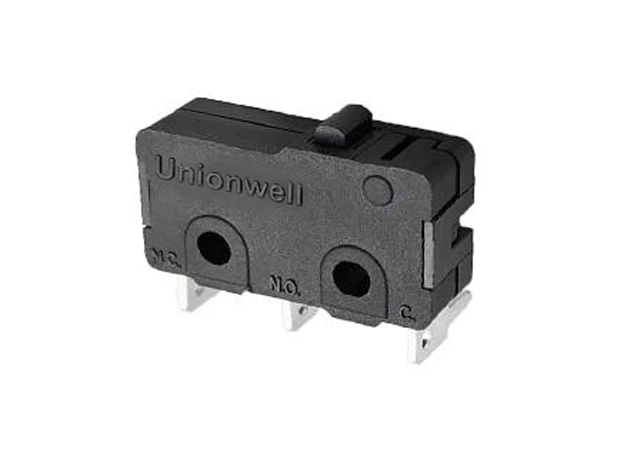

Name: Minature DPDT Micro Switch For Float G610
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

Description of Minature DPDT Micro Switch For Float G610

The Miniature DPDT Micro Switch G610 is designed for float applications, offering reliable double pole double throw switching. Compact and durable, it ensures precise control in liquid level detection systems. Ideal for tight spaces, the G610 provides consistent performance, making it perfect for industrial and commercial environments requiring accurate float operation.

Features of Minature DPDT Micro Switch For Float G610

Contact size and tight configuration.
Long life,High reliability.
DPDT double-break type.
Widely used in industry control etc.

Application of Minature DPDT Micro Switch For Float G610

Float
Sewage Pump

Typical Specifications of Minature DPDT Micro Switch For Float G610

Rating	06	0.5A 125/250VDC
Rating	06	0.5A/6A 125/250VAC,1/4HP 25
Operating Frequency	Electrical	10-30 cycles/minute
Operating Frequency	Mechanical	120 cycles/minute
Contact Resistance(initiative)		30-100 mΩ Max
Insulation Resistance		100 mΩ Max (at 500VDC)
Dielectric Strength		AC 750V RMS ( 50-60 Hz)
Storage Temperature		40T125
Storage Humidity		85%RH Max
Service Life	Electrical	50,000-100,000 cycles
Service Life	Mechanical	500,000 cycles
Unit Weight		1.96 g
