G23A Motor Electronic Lock for DC Charging Gun

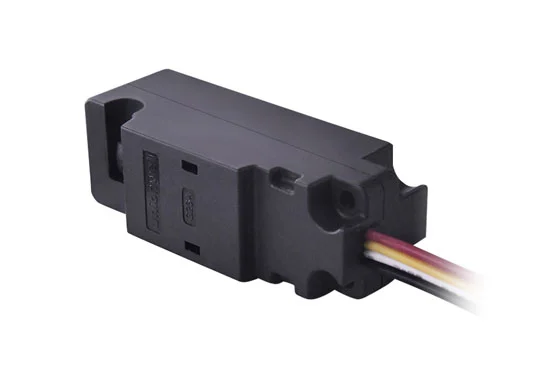

g23a motor electronic lock for dc charging gun1
g23a motor electronic lock for dc charging gun1

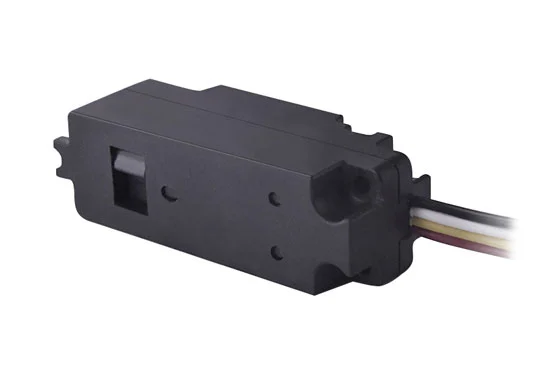

g23a motor electronic lock for dc charging gun2

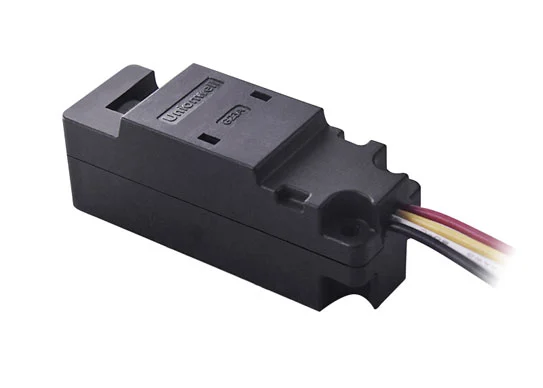

g23a motor electronic lock for dc charging gun3

G23A Motor Electronic Lock for DC Charging Gun

  • High-density sealed motor electronic lock, meeting IP67 requirements

  • Reliable locking,manual and automatic unlocking

  • Accurate locking or unlocking positioning and clear gear

  • The motor electronic lock is sensitive to forward and reverse conversion,with long service life and stable and reliable.


Contact Us Datasheet

Specifications of G23A Motor Electronic Lock for DC Charging Gun

Rating12VDC.
Insulation Resistance(at 500VDC)100MΩ Min.
Dielectric Strength500VAC (50~60Hz)
Degree of ProtectionIEC IP67(the drive roller and housin excepted)
Operating Temperature-40℃～+85℃
Operating Humidity45%RH~85%RH
Service LifeElectrical60,000 cycles
Mechanical60,000 cycles（Min.）
Operating FrequencyElectrical20 cycles/minute
Mechanical20 cycles/minute
Operating Features (At 12VDC)OF700g.cm（Min.）
HF250g.cm（Min.）
PT45°±5°
Shaft Strength200N(No mechanical damage under vertical axial force)
Manual Unlocking Torque (OF)250g.cm（Min.）


Products

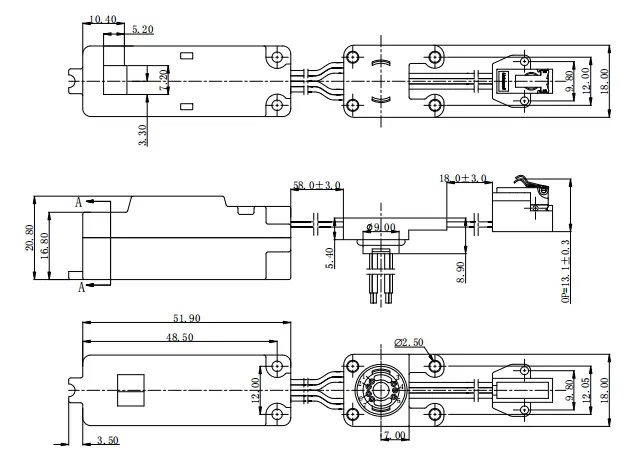

Product Drawing of G23A Motor Electronic Lock for DC Charging Gun

g23a drawing2

G23A Motor Electronic Lock for DC Charging Gun Application

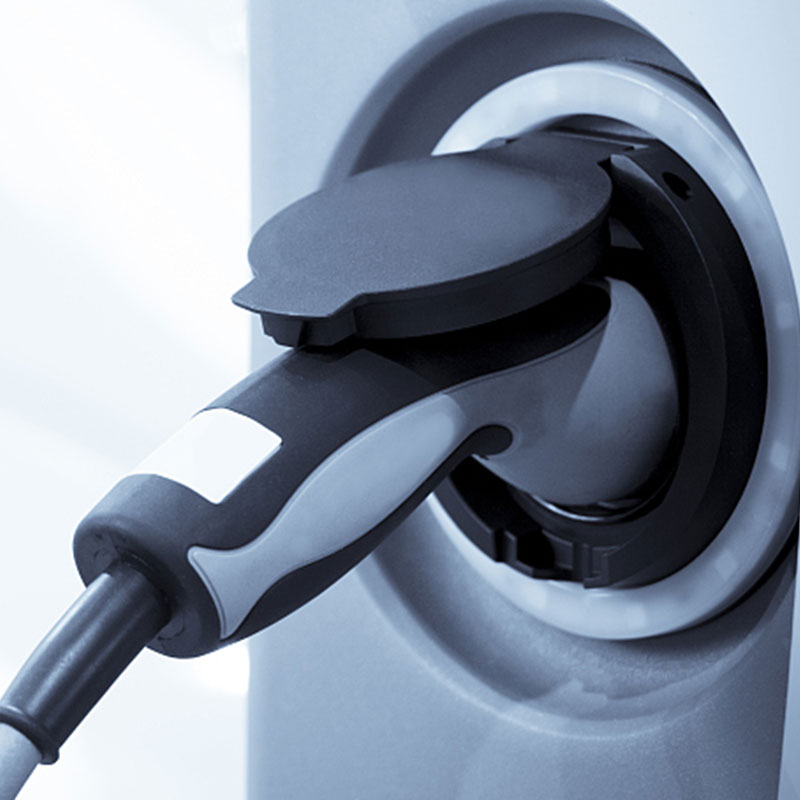

Micro Switch Application in EV and Charging Devices
New Energy
Contact with Us
Tel:
+86-20-87713867
E-mail:
inquiry@unionwellgz.com
Add:
RM1311, Renfeng Building, No. 490, Tianhe Road, Tianhe District, Guangzhou, Guangdong, China, 510630.
Unionwell
Switches are us, switch to us. Find quality micro switches at Unionwell

Popular Custom Products

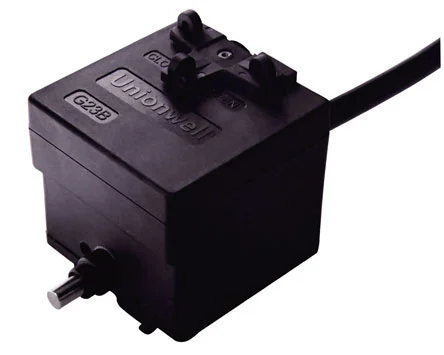

G23B Motor Electronic Lock for Onboard AC Charging Socket
G23B Motor Electronic Lock for Onboard AC Charging Socket

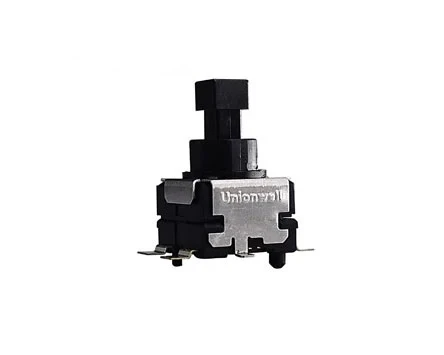

G25 Push Button Switch
G25 Push Button Switch

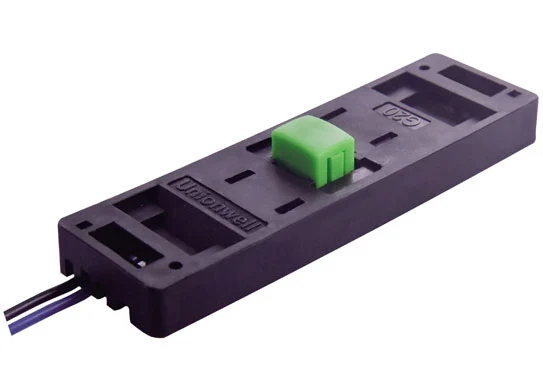

G20 Seat Belt Reminder Switch
