G23B Motor Electronic Lock for Onboard AC Charging Socket

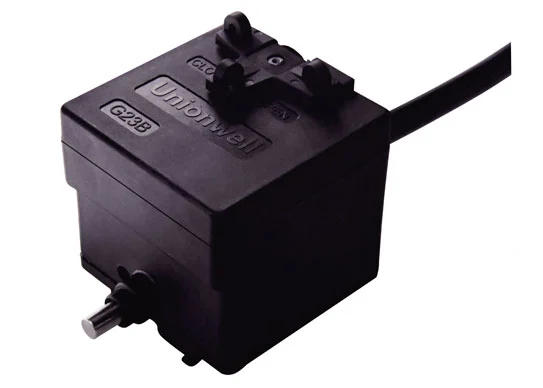

g23b motor electronic lock for onboard ac charging socket1
g23b motor electronic lock for onboard ac charging socket1

G23B Motor Electronic Lock for Onboard AC Charging Socket

  • High-density sealed motor electronic lock meeting IP54 requirements

  • Reliable locking,manual and automatic unlocking

  • Accurate locking or unlocking positioning and clear gear

  • The motor electronic lock is sensitive to forward and reverse conversion, with long service life and stable and reliable.


Contact Us Datasheet

Specifications of G23B Motor Electronic Lock for Onboard AC Charging Socket

Rated voltage12VDC (pulse)
Voltage range12±10% VDC.
Idling current<50mA
Locked-rotor current<500mA
Response time<100mS
Maximum power on time3S (No long time conduction)
Locking time<300mS
Unlocking time<300mS
Triggering time at 12VDC0.25S<t<1S
Functional angle<90°
Insulation Resistance100MQ Min
Dielectric Strength500VAC (50~60Hz)
Degree of ProtectionIECIP54 Except driving wheel and push rod active cavity
Operating Temperature-40°C~+85°C
Operating Humidity45%RH~85%RH
Service LifeElectrical30,000 cycles
Mechanical30,000 cycles (Min.)
Operating FrequencyElectrical18 cycles/min
Mechanical18 cycles/min
Operating Features (At 12VDC)HF300g (Min.)
Fracture Force200N
PT8.0mm±0.20mm
OF300g.cm (Min.)


Products

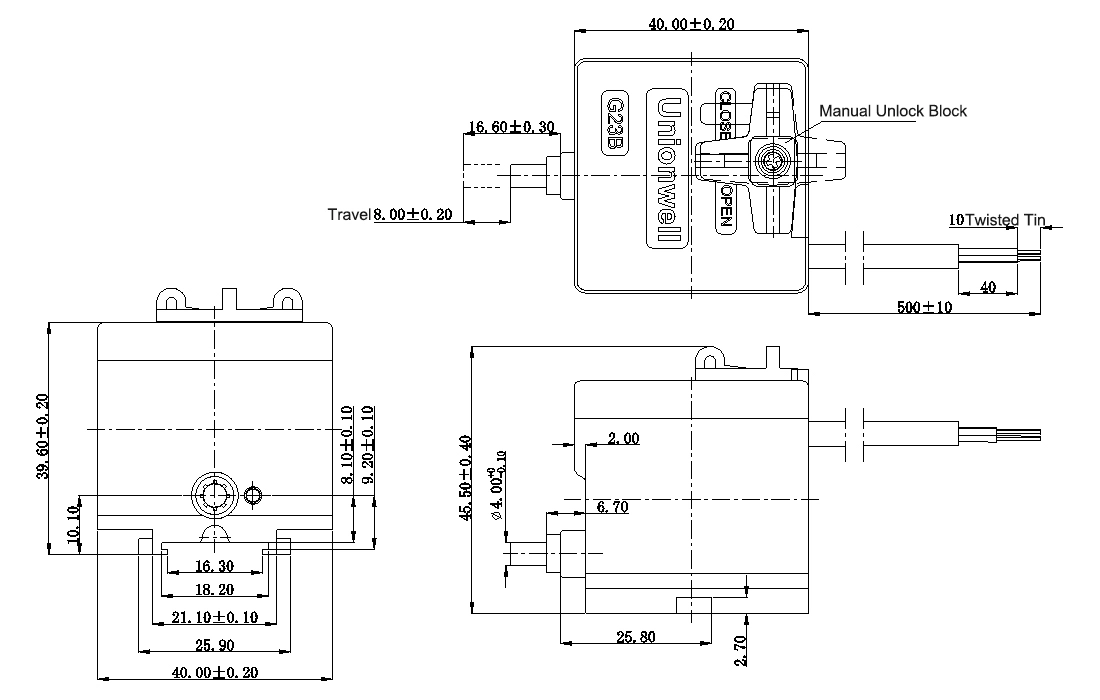

Product Drawing of G23B Motor Electronic Lock for Onboard AC Charging Socket

g23b drawing

G23B Motor Electronic Lock for Onboard AC Charging Socket Application

Micro Switch Application in EV and Charging Devices
New Energy
