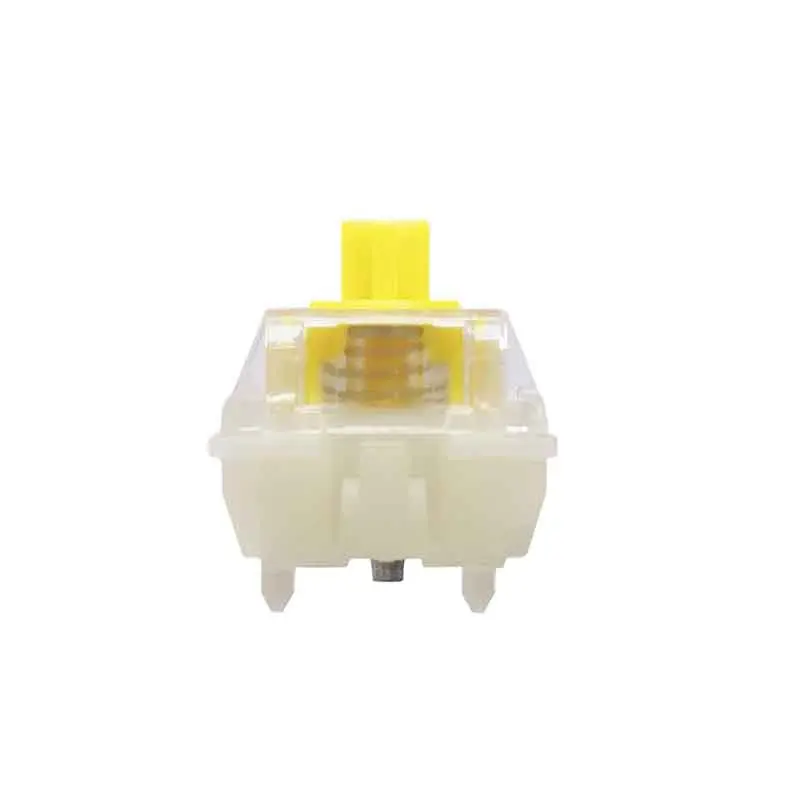

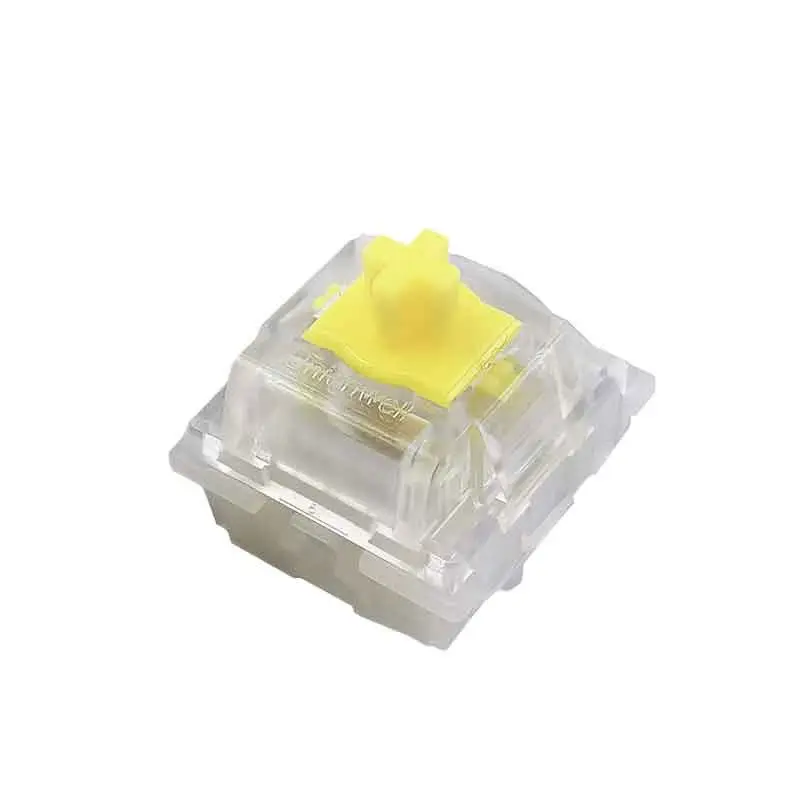

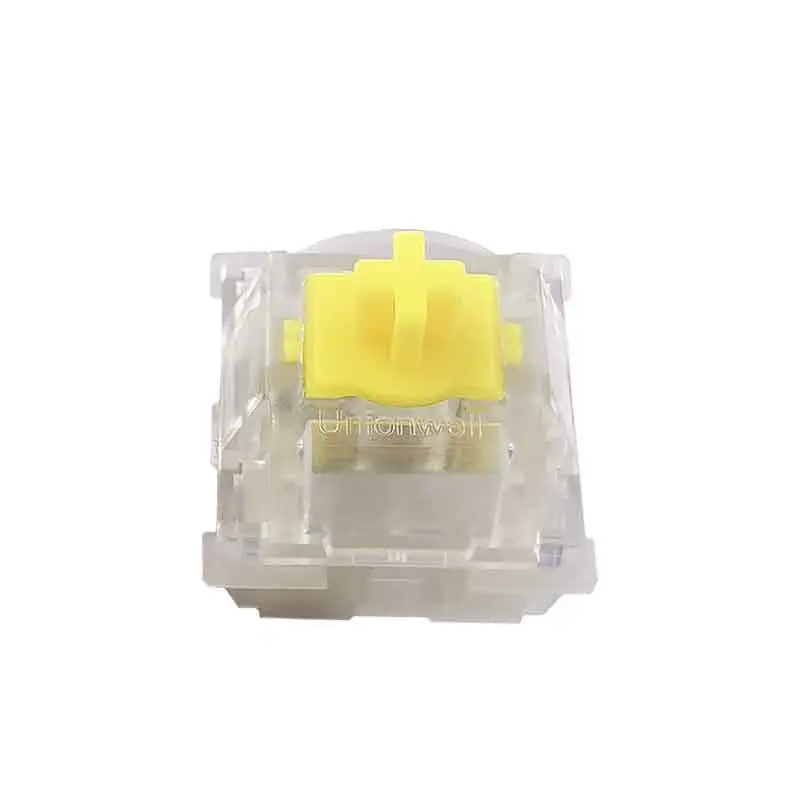

Unionwell Inductive Keyboard Switch GT06, inductive Switches China Factory

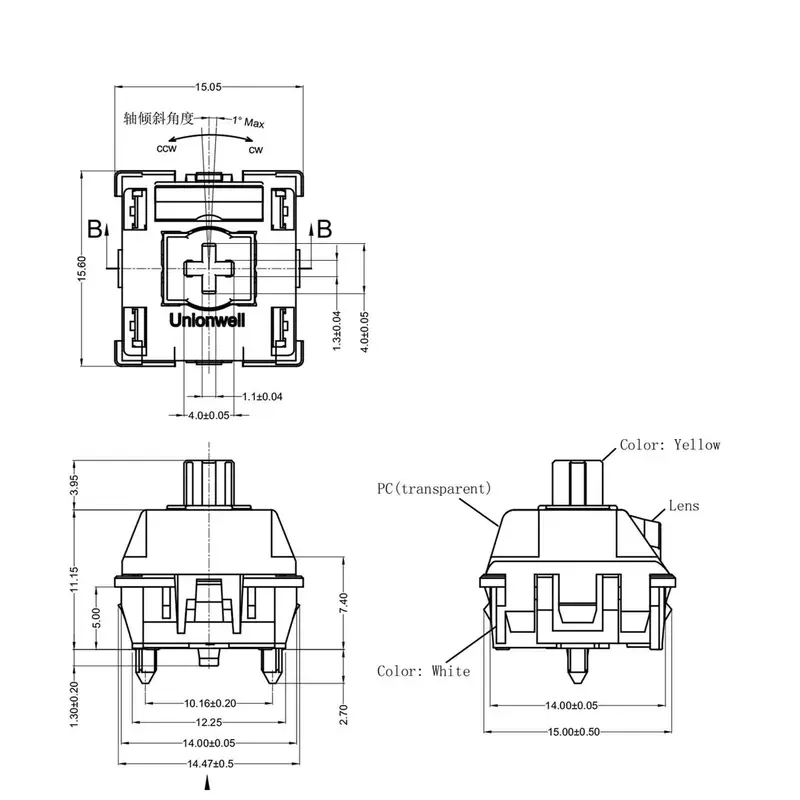

Specifications of Inductive Keyboard Switch GT06

Operating force	30+10gf
Travel	3.5+0.2mm
Adjustable precision	0.014mm
Adjustment range	0-3.5mm
TRIGGER PRESSURE	30+10gf
Full travel pressure	<85gf
Mechanical life	80,000.000
Working temperature range	(-40°C~+80°C)
Ambient humidity	=>85%RH, +40°C

Comparison of Inductive Switch and Magnetic Switch

Switch Type	Inductive Keyboard Switch	Magnetic Keyboard Switch
Sensing Method	Bidirectional Active	Unidirectional Active
Dead Zone	Nearly Zero	Nearly Zero
Magnetic Interference	None	susceptible to interference
Temperature Drift Interference	None	susceptible to interference
Magnetic Overflow	None	Yes
Automatic Calibration	Yes	None

The "Tesla" inductive switch, collaboratively developed by Unionwell, Black Shark, and Azoteq, ingeniously harnesses the principle of electromagnetic induction to enable precise keypress detection with instantaneous response. A specially designed coil embedded in the circuit board beneath the switch interacts with the inductive magnetic field, detecting variations in magnetic flux as the metal switch moves. This innovative mechanism ensures exceptional accuracy in identifying key trigger strokes, capturing even the slightest key movements with precision. As a result, inductive switch keyboard micro switches are poised to lead the next generation of keyboard technology.
