Non Sealed Door Micro Switch SWD01B/SWD06B
refrigerator door switch price
refrigerator door switch price
refrigerator switch
refrigerator door switch

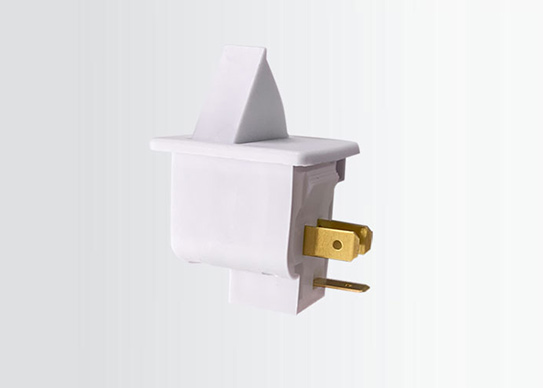

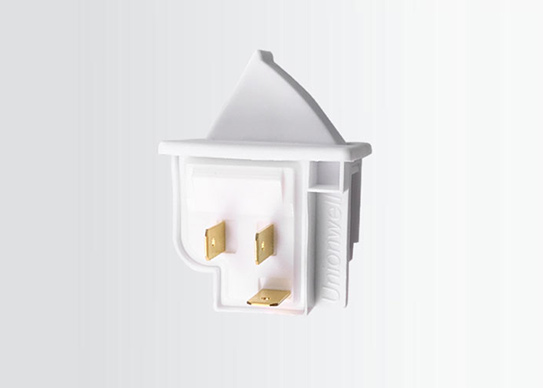

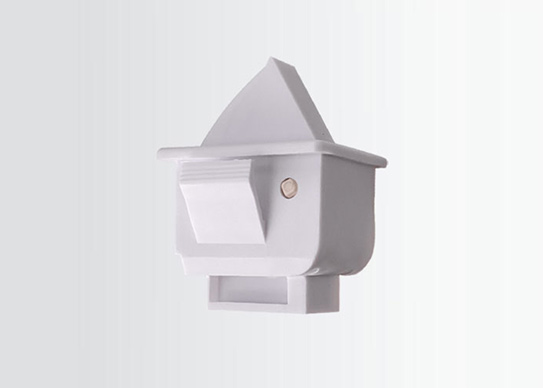

Non Sealed Door Micro Switch SWD01B/SWD06B

  • Fully sealed, explosion-proof with ATEX certification

  • Two options of electrical load--high current load for light control, and signal current load for signal control.

  • Universal quick installation setting

  • Various shapes of operation buttons

  • Widely used in refrigeration appliances and equipment such as heat pumps, air conditioners, dehumidifiers, refrigerators, etc.

Contact Us

Specifications of Non-Sealed Door Switch SWD01B/SWD06B

Place of Origin Guangdong, China (Mainland)
Brand Name Unionwell
Model Number SWD01B/ SWD06B
Max Operating  Force (at pin plunger) 150gf/Others
Terminal Type Wires/Solder/PCB/Others
Lever Type No Lever/Leaf Lever/Hinge Lever/Simulated Roller
Circuit Code SPDT/SPST-NO/SPST-NC
Certifications ENEC, UL/cUL, CQC
OEM/ODM Available
Operating  Linear Speed 7.5~500mm/s
Operating  Frequency Mechanical 60 cycles/min
Electrical 20 cycles/min
Insulation Resistance ≥100MΩ (500VDC Insulation Resistance Meter)
Contact Resistance (Initial Value) with terminals ≤100mΩ
Voltage Resistance between terminals AC1000V, 50/60Hz, 1min.
between terminals and unelectrified metal parts AC1500V, 50/60Hz, 1min.
Vibration Durability 10-55Hz Double amplitude 1.5mm
Service Life Electrical 2.5A 125/250VAC 25T85 μ 5E4
6A 125/250VAC 25T85 μ 1E4
0.1A 125/250VAC 0.1A 30VDC 25T85 μ 5E4
Mechanical 300,000 cycles (60 cycles/min)
ATEX Proof and Certificate Number S 20 ATEX 107202 0001U
3 G EX nC II C Gc
PTI 450V
Operating  Temperature -25~+85°C
Operating  Humidity 95% RH Max


Products

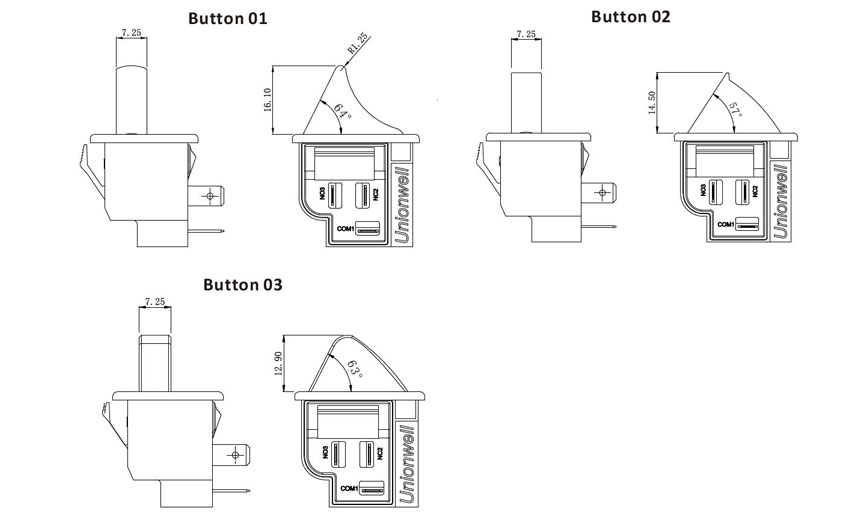

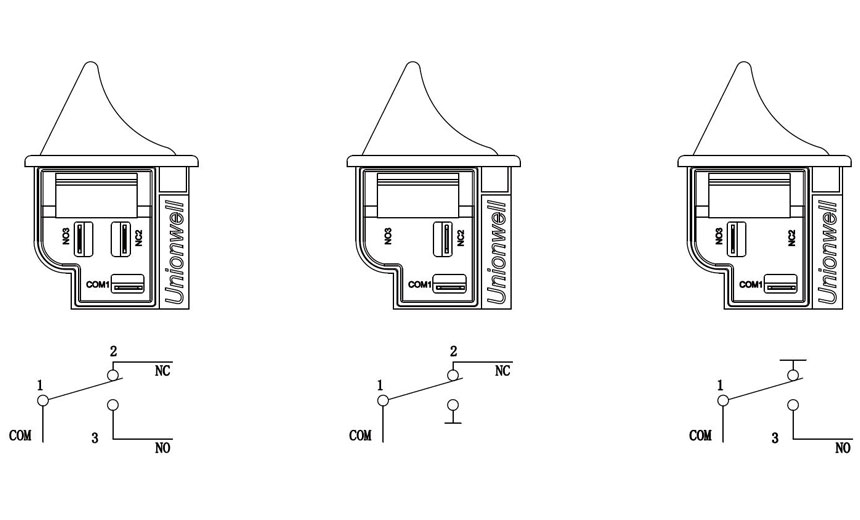

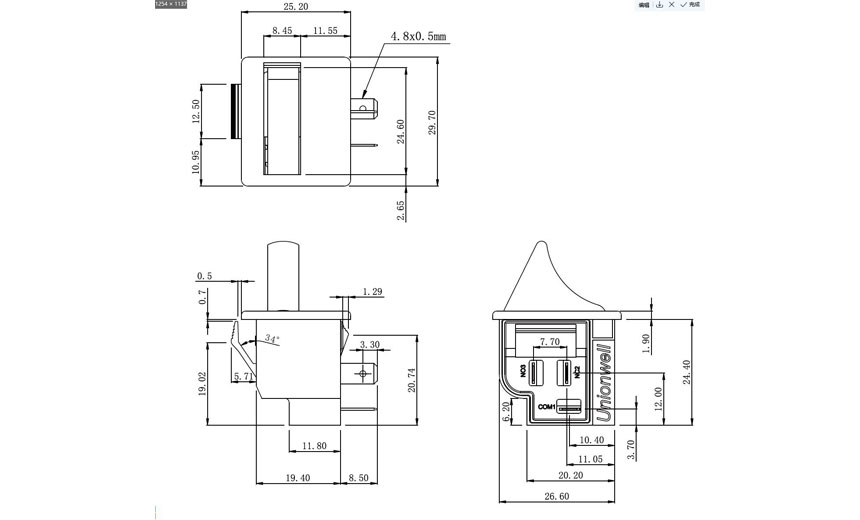

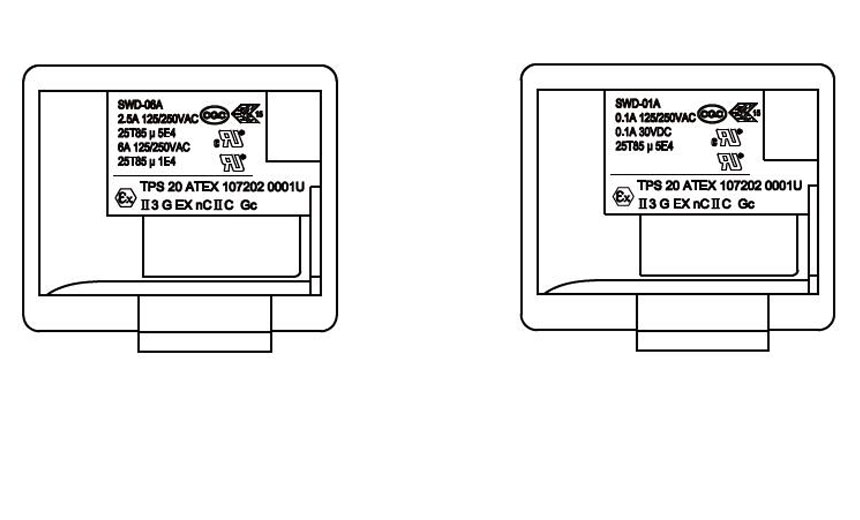

Product Drawing of Non Sealed Door Micro Switch SWD01B/SWD06B

120 volt door switch
microwave door switch price
fridge door switch price
door switch

Non Sealed Door Micro Switch Related Applications
